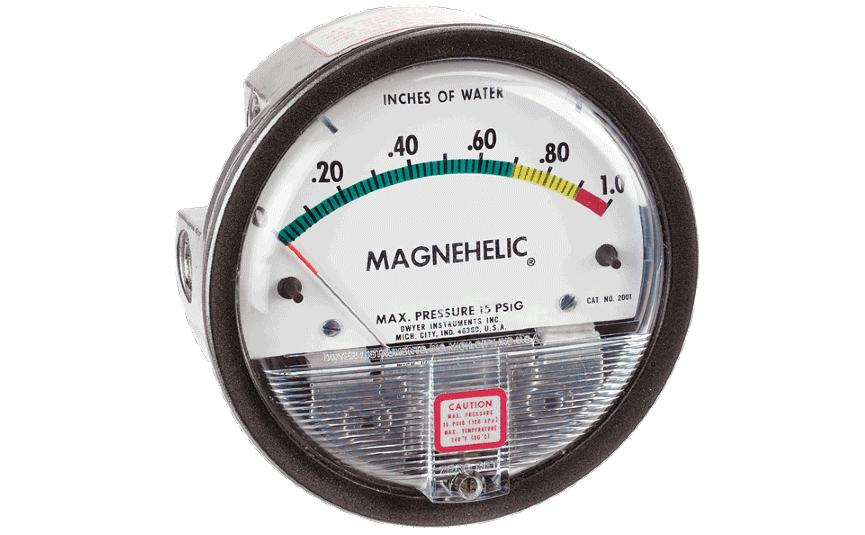

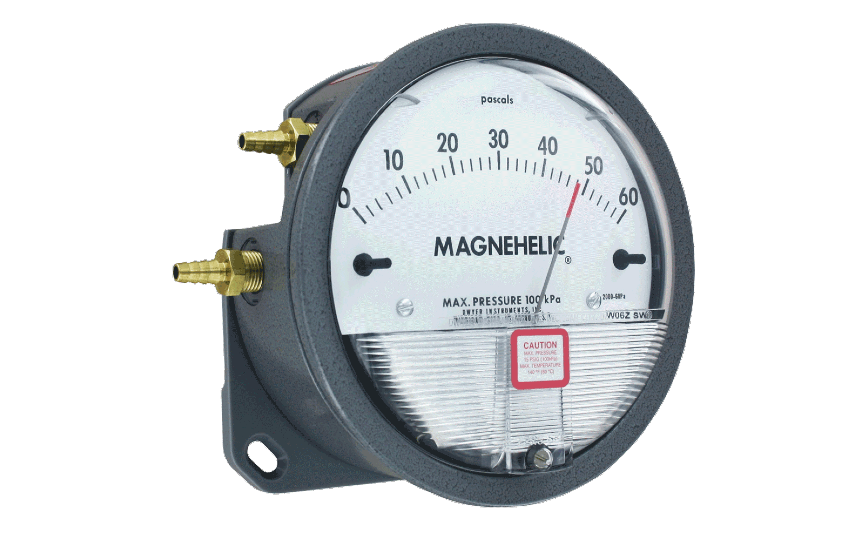

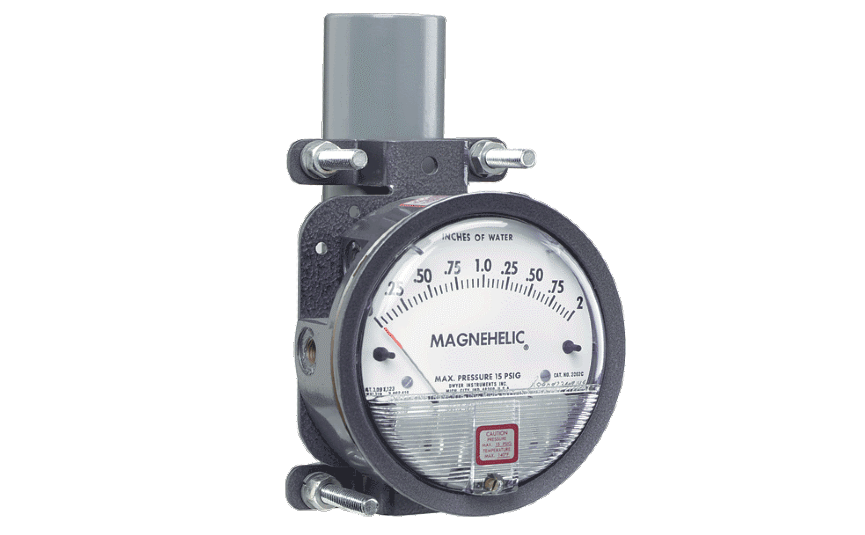

Dwyer 2000系列 指針式微差壓計/差壓表

2000型正壓 ; 2300型正負壓 ; 可選的範圍如下:
0 to 6mm,0-10mm ,0-50mm,0-100mm,0 to 5000mm of water, 0-10cm,0-25cm,0-50cm,0-100cm,0 to1000cm of water, 0-30Pa,0-100Pa,0-250Pa,0-500Pa,0-1000Pa,0-8000 Pa 0-1 kPa ,0-5 kPa ,0-50 kPa ,0-100 kPa ,0 to 200kPa, 0-1mbar,0-5mbar,0-20 mbar,0-100 mbar,0-800 mbar 05-0-.20" w.c.,0-1" w.c. ,0-5" w.c.,0-50" w.c.,0-500" w.c. 0-0.20 bar,0-1 bar,0-2 bar,0-1 kg/cm²,0-2 kg/cm² 0-1psid,0-5 psid,0-10 psid,0-20 psid,0-30 psid 2000-00AV 0-0.25" w.c. & 0-2000 fpm ; 2001AV 0-1" w.c. & 0-4000 fpm, 2005AV 0-5" w.c. & 0-8800 fpm ; 2025AV,0-25" w.c. & 0-20000 fpm
3 -0-3 mm,10-0-10 mm,50-0-50 mm,100-0-100 mm 500 -0- 500 mm w.c. 1-0-1 cm ,5-0-5 cm,10-0-10 cm,25-0-25 cm,50-0- 50cm of water 30 - 0 - 30Pa,50 - 0 - 50Pa,100 to 0 to 100PA,500-0-500 Pa ,1000-0-1000 Pa 0.2-0-0.2 kPa ,1-0-1 kPa ,2-0-2 kPa ,3 -0- 3kPa,5-0-5 kPa,8-0-8 kPa 1-0-1 mbar,1.5-0-1.5 mbar, 10-0-10 mbar,50-0-50 mbar,250-0-250 mbar 0.125-0-0.125" w.c.,1-0-1" w.c.,3-0-3" w.c.,10-0-10" w.c.,75 -0-75 " w.c, 有81種可選的壓力範圍,有in W.C,cm W.C,Pa,kPa,PSI等不同的單位可選

接頭:1/8” NPT Female.

一般型精度 : Accuracy: ±2% (-HA model ±1) of FS (±3% (-HA ±1.5%) on -0, -100PA, -125PA, -10MM and ±4% (-HA ±2%) on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C). 加-HA是高精度(Within 1%) ; 加-SS耐腐飾不銹鋼材質(304ss)

應用:

測量風扇鼓風機的壓力、過濾器阻力風速、爐體通風孔板的壓降、液壓系統的壓力、 檢測氣體空氣可指示空氣及非腐蝕氣體的正壓、負壓(真空)或差壓,與隔膜直立安裝。
- ASF(Adjustable Signal Flag可調信號標誌)
-NIST(NIST Traceable Calibration Certificate校準證書
-FC(Factory Calibration Certificate工廠證書); -COO(Certificate of Origin原產原證書)

壓力限制:

一般型 : 1.034 bar,MP型: 2.41 bar,HP型:5.52 bar ●耐溫:-6.67 ~ 60℃
